Bo mạch chủ mainboard Dell R420 1U
4.900.000₫
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
Thông số kỹ thuật cho bo mạch chủ
CPU Support: Intel Xeon E5-2400, E5-2400 v2 Sires and 02 x CPU support
Chipset: Intel C602
Memory type: Up to 384GB (12 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
RAID support: 0, 1, 5, 6, 10, 50, 60 with PERC S110, H310, H710, H710P, H810, 6Gbps SAS, SATA, or SSD
Storage support: Up to 16TB with SFF and LFF, 7.2K 10K, 15K
Power supply support: Platinum efficiency 550W and 350W
PCI slot: 1 x PCI-E x8 and 1 x PCI-E x16 with half-length or full-height
NIC: Broadcom® 5720 Dual Port 1Gb LOM
Remote management: Up to iDRAC7 Enterprise 16GB vFlash media
Systems management: IPMI 2.0 compliant, Dell OpenManage Essentials and Dell Management Console, Dell OpenManage Power Center, Dell OpenManage Connections
Operating system support: Microsoft® Windows Server includes Hyper-V, Linux Enterprise Server, Citrix XenServer, VMware vSphere ESXi.
Những tính năng nổi trội của Bo mạch chính (Mainboard) Dell PowerEdge R420 05M7VK:
High-performance computing
Address mainstream applications with the latest Intel® Xeon® processor E5-2400 and E5-2400 v2 product families — designed to be a foundation for flexible and efficient data centers that scale readily to meet growing needs, The high-density design of the R420 pairs one- or two-socket configurations with up to 12 dual in-line memory modules (DIMMs) to support both consolidated and virtualized environments.
Address mainstream applications with the latest Intel® Xeon® processor E5-2400 and E5-2400 v2 product families — designed to be a foundation for flexible and efficient data centers that scale readily to meet growing needs, The high-density design of the R420 pairs one- or two-socket configurations with up to 12 dual in-line memory modules (DIMMs) to support both consolidated and virtualized environments.
Scalable I/O features
Support both memory-intensive and compute-intensive applications and databases with flexible I/O bandwidth that features PCI Express (PCIe) 3.0-enabled expansion slots.
Support both memory-intensive and compute-intensive applications and databases with flexible I/O bandwidth that features PCI Express (PCIe) 3.0-enabled expansion slots.
Versatile storage options
Configure your storage options to suit your needs. The PowerEdge™ R420 helps enable you to target your requirements with up to eight drives.
Configure your storage options to suit your needs. The PowerEdge™ R420 helps enable you to target your requirements with up to eight drives.
Intelligent systems management
Simplify deploying, updating, monitoring and maintaining your PowerEdge™ servers with the Dell™
Simplify deploying, updating, monitoring and maintaining your PowerEdge™ servers with the Dell™
OpenManage™ portfolio.
Processor:
Intel® Xeon® processor: E5-2400 and E5-2400 v2 product families
Processor sockets: 2
Internal interconnect: Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s
Cache: 2.5MB per core; core options: 4, 6, 8, 10
Processor sockets: 2
Internal interconnect: Intel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0 GT/s
Cache: 2.5MB per core; core options: 4, 6, 8, 10
Operating System:
Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®
Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®
Memory: Up to 384GB (12 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
RAID support:
Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non RAID):
6Gbps SAS HBA
Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non RAID):
6Gbps SAS HBA
Disk bays: Up to eight 2.5” hot-plug SSD, SAS, or SATA or up to four 3.5” hot-plug SAS, SATA, or SSD
Availability: High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant
Power supply:
Platinum efficiency 550W and 350W power supplies
Silver efficiency cabled 550W power supply
Auto-ranging power supplies
Silver efficiency cabled 550W power supply
Auto-ranging power supplies
Chipset: Intel C602
Storage:
Maximum internal storage: Up to 16TB
Hot-plug hard drive options:
2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
3.5” SATA, nearline SAS, SAS (15K)
Self-encrypting drives available
Cabled hard drive options: 3.5” SATA, nearline SAS, SAS (15K)
Maximum internal storage: Up to 16TB
Hot-plug hard drive options:
2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
3.5” SATA, nearline SAS, SAS (15K)
Self-encrypting drives available
Cabled hard drive options: 3.5” SATA, nearline SAS, SAS (15K)
2 PCIe slots:
With two processors:
One x16 PCIe slot with x16 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
With one processor:
One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
With two processors:
One x16 PCIe slot with x16 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
With one processor:
One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height
Network Controller Embedded NIC:
Broadcom® 5720 Dual Port 1Gb LOM
Broadcom® 5720 Dual Port 1Gb LOM
I/O adapter options:
1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5719 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter 10Gb Converged Ethernet:
Brocade® BR1020 Dual Port 10Gb CNA
QLogic® QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CNA
Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA
10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapte
FC8/FC4 HBA:
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
QLogic QLE2562 8Gb Dual Port FC HBA
Emulex® LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA
1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5719 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter 10Gb Converged Ethernet:
Brocade® BR1020 Dual Port 10Gb CNA
QLogic® QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CNA
Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA
10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapte
FC8/FC4 HBA:
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
QLogic QLE2562 8Gb Dual Port FC HBA
Emulex® LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA
Management:
Remote management:
Basic management (default)
iDRAC7 with Lifecycle Controller
iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Systems management:
IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center
Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft® System Center
Dell plug-in for VMware® vCenter™
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Remote management:
Basic management (default)
iDRAC7 with Lifecycle Controller
iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Systems management:
IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center
Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft® System Center
Dell plug-in for VMware® vCenter™
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

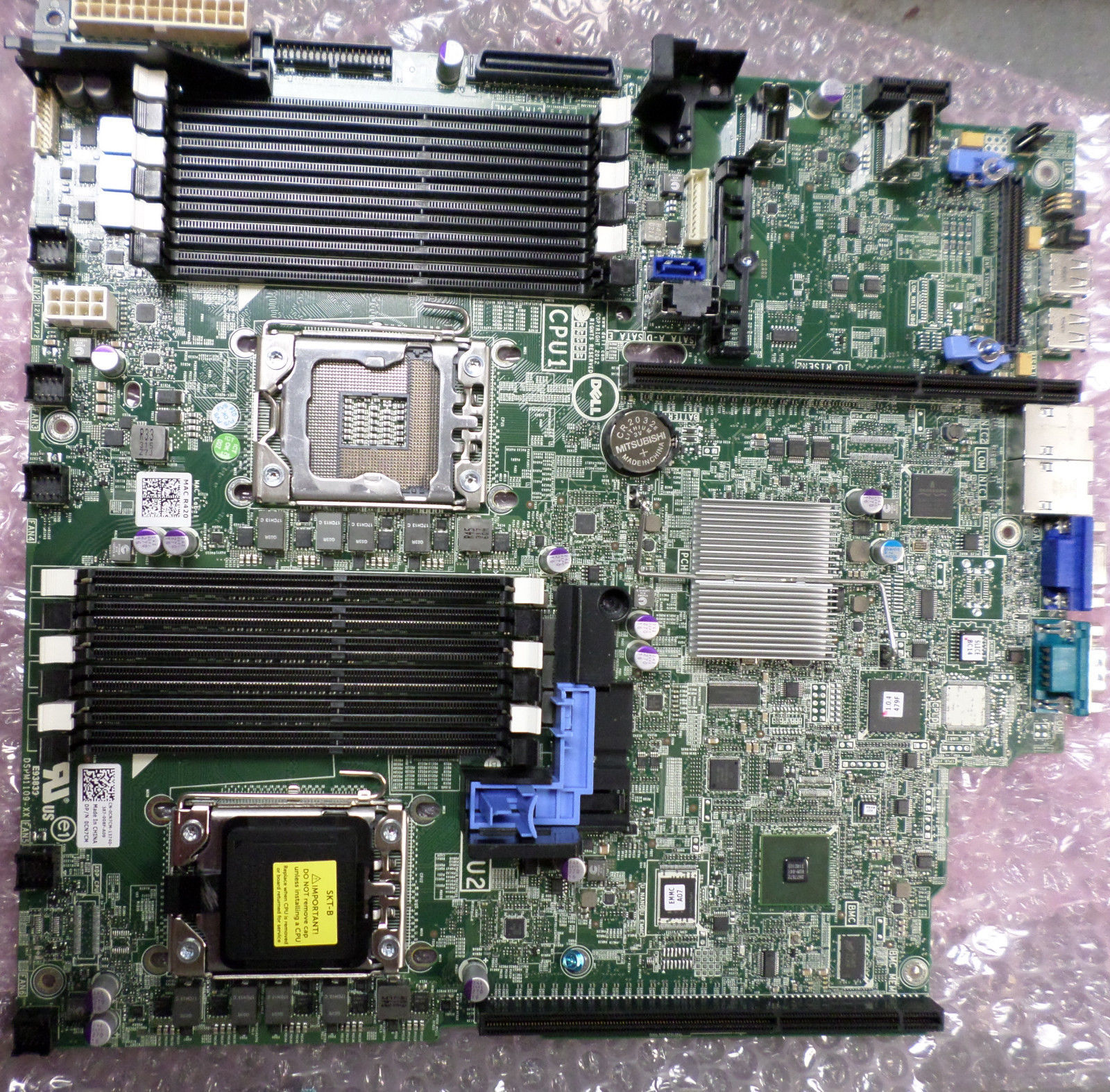

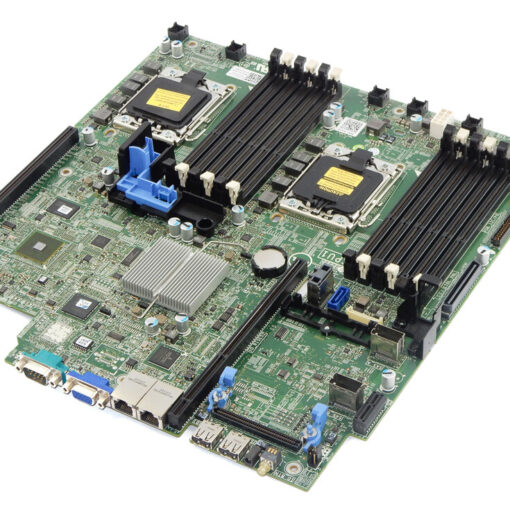

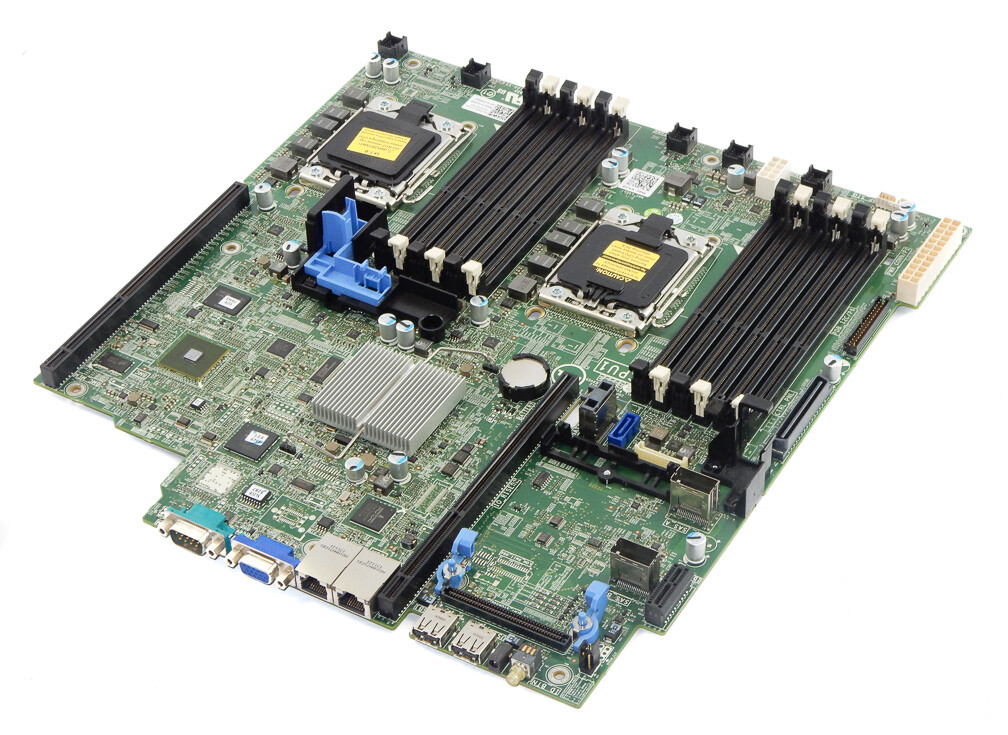

Hình ảnh cho bo mạch chủ
