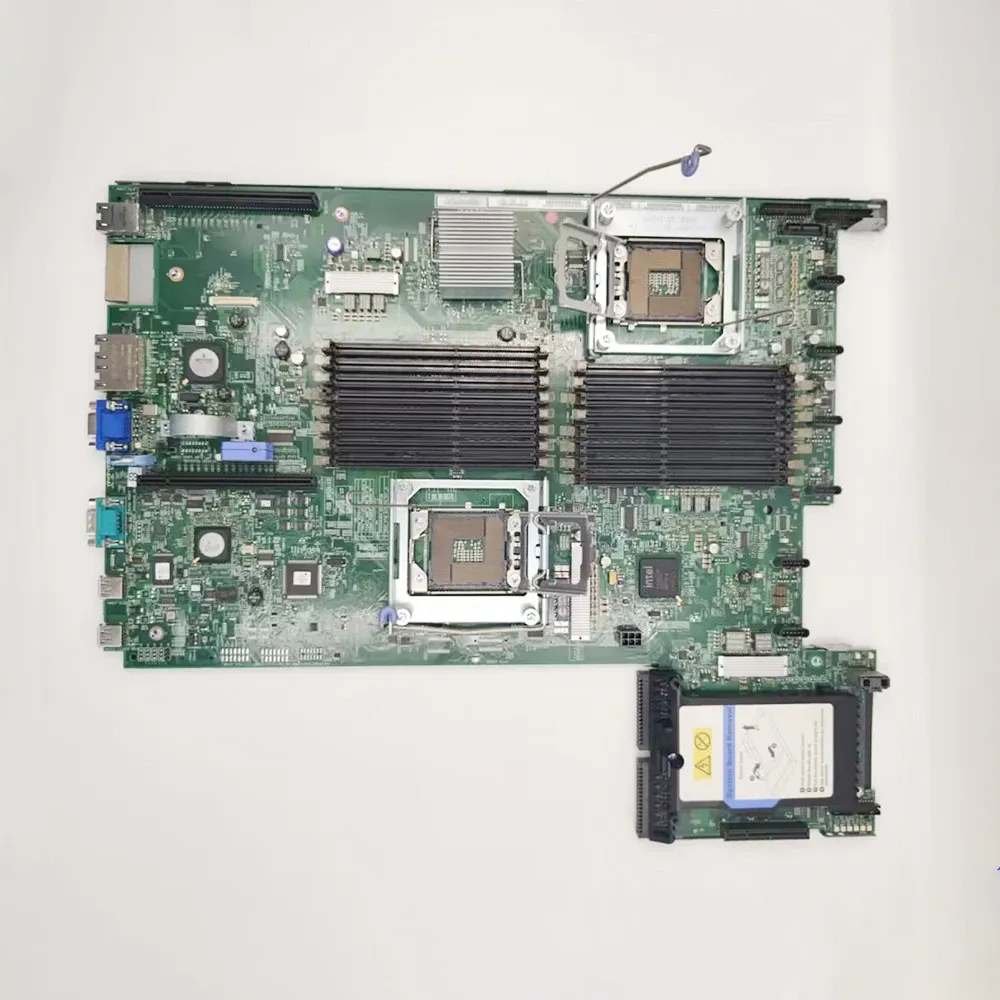

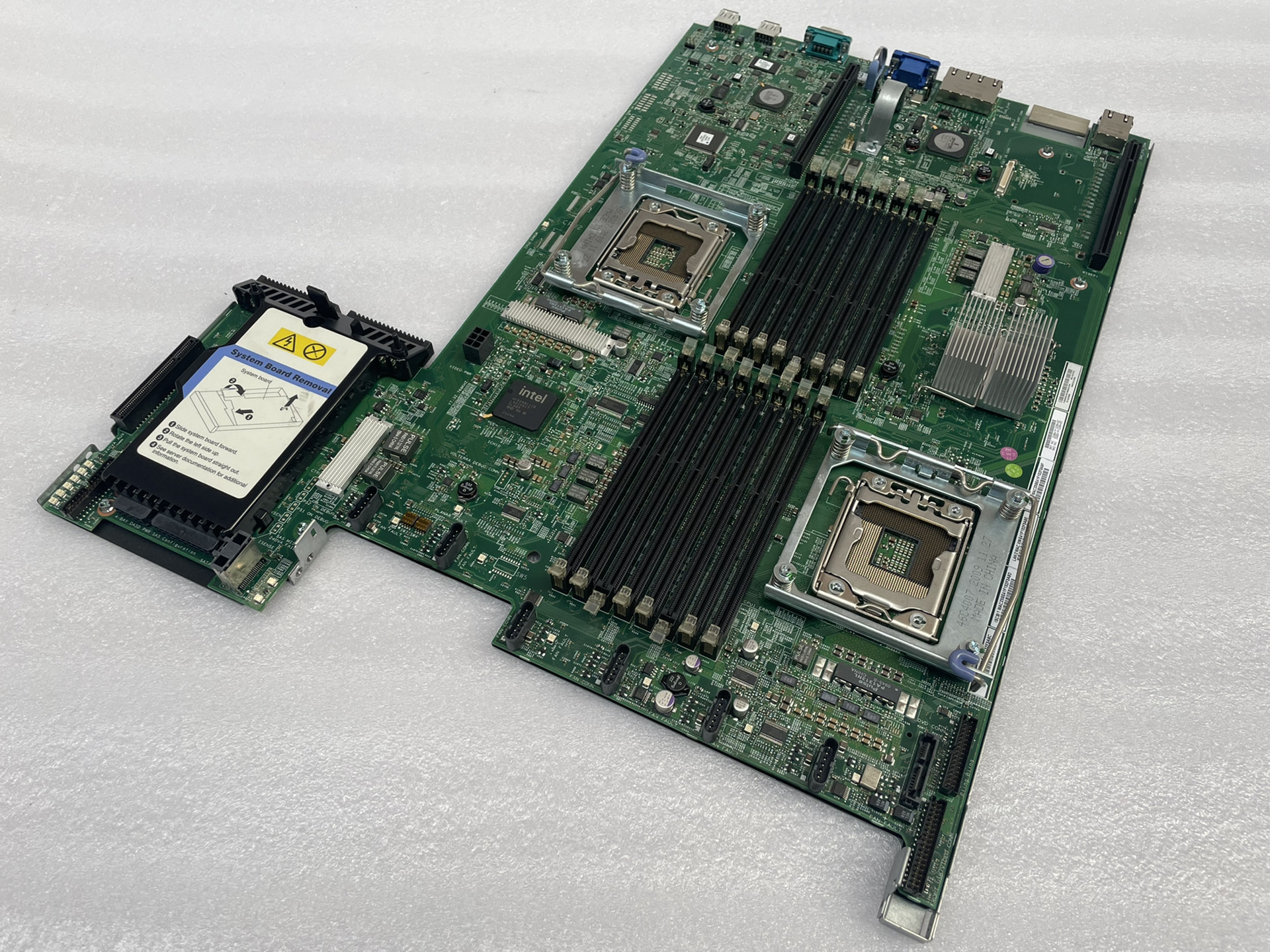

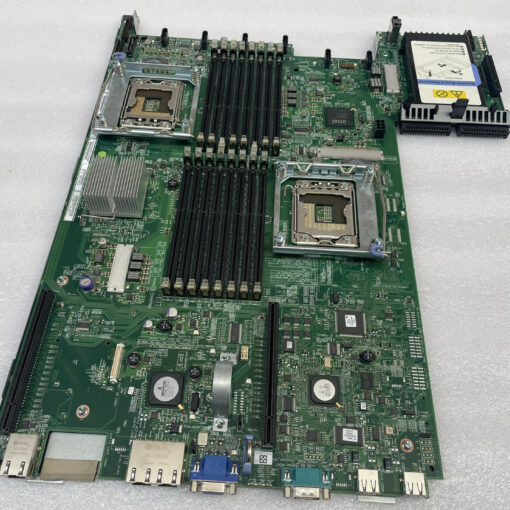

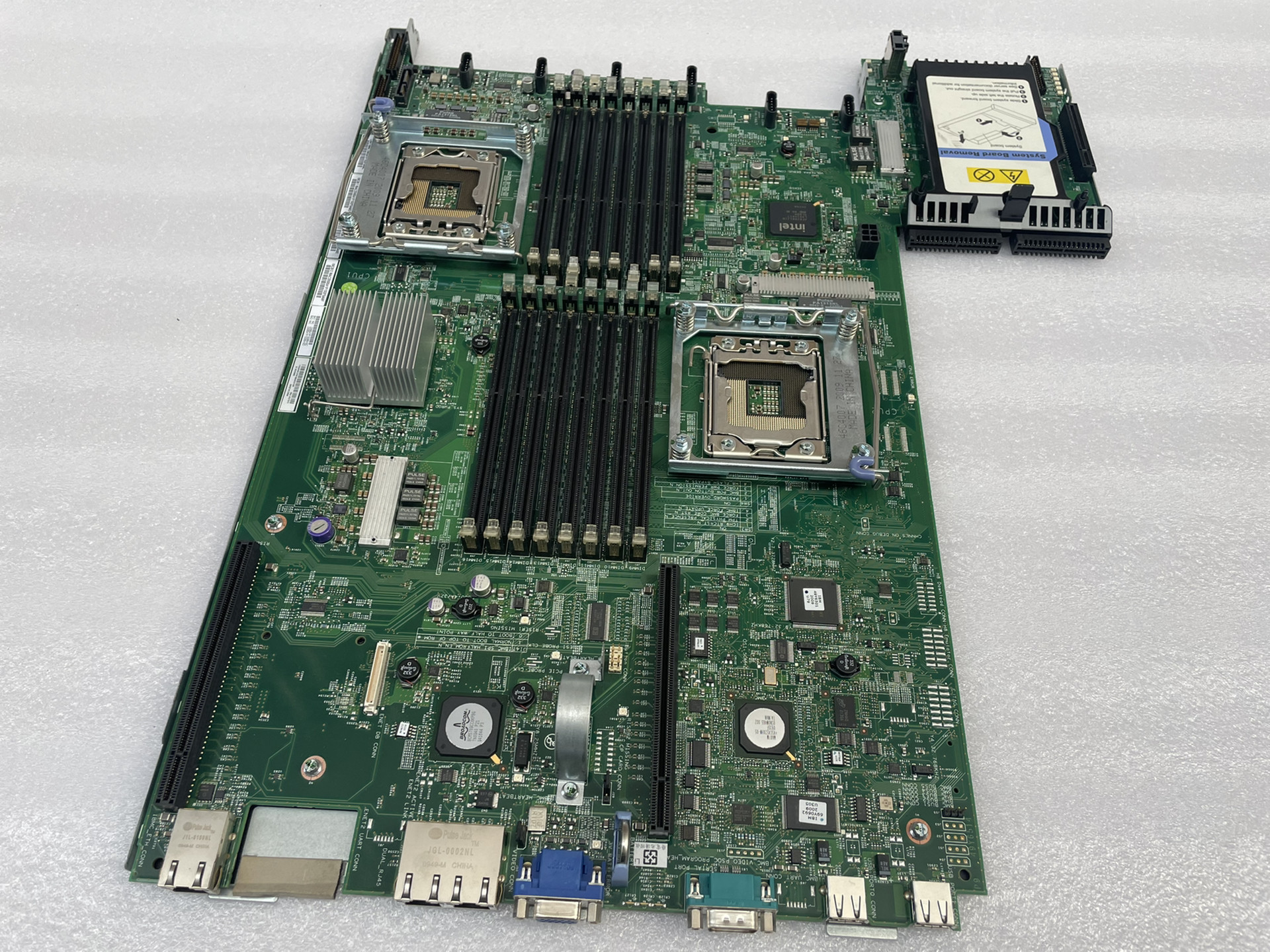

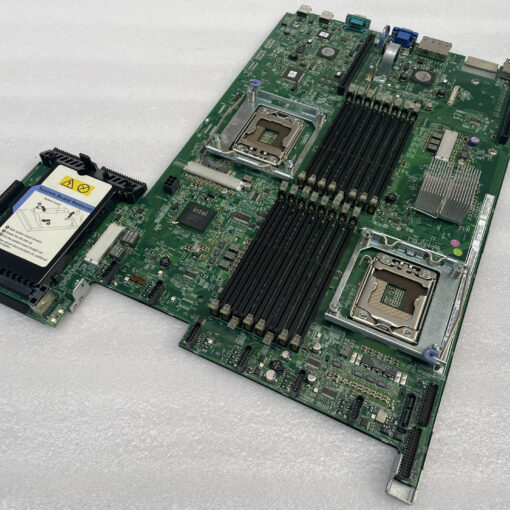

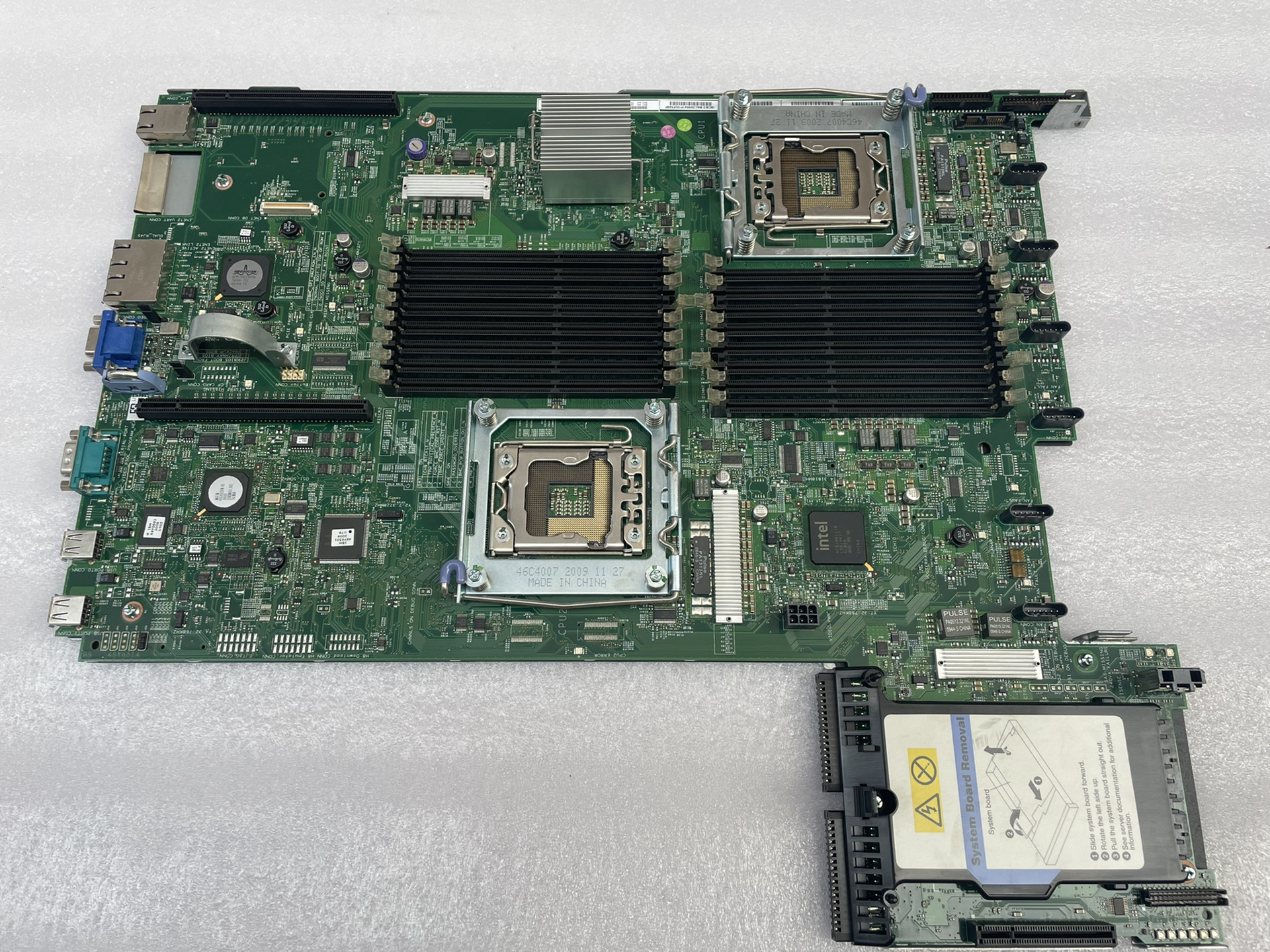

Bo mạch chủ mainboard server IBM X3550 M3 1u hdd 2.5 inch

4.500.000₫

Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)

Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe

Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội

Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)

Mua ngay

Chi tiết sản phẩm Thông số kỹ thuật Đánh giá Hỏi đáp Facebook

Mô tả

Thông số kỹ thuật cho bo mạch chủ

• Part Number : 59Y3793 69Y5082 81Y6625
• Manufacturer: IBM
• IBM xSERIES x3550 M3 MOTHERBOARD SYSTEMBOARD 59Y3793 69Y5082 81Y6625
• Compatibility : P12

Specification

AGP Slots	0
Audio Output:	None
Compatible Memory Type	DDR3
ISA Slots	1
LPT Ports	0
Manufacturer	IBM
Network On-board	Ethernet
OEM Model Number	81Y6625
PCI Slots	0
PCI-E Slots	2
PCI-X Slots	0
Processor Socket	Socket 1366(LGA1366)
PS2 Ports	0
Serial Ports	1
USB Ports	2
Video Outputs	VGA
Part Data
Part Number	81Y6625
Part Description	System Board Assy for 3650 M3 w/Tray
Commodity Type	Mother Board
Brand	IBM

Options

Power supply for x3650 M3

675 W, High Efficiency (all models) 39Y7218

675 W, AC (all models) 39Y7225

675 W, AC (all models) 39Y7227

460 W, AC (all models) 39Y7229

460 W, AC (all models) 39Y7231

675 W, AC (all models) 39Y7236

675 W, DC (all models) 39Y7215

Description	Serial Number
Cover (all models)	59Y3790
PCI Express riser-card assembly (x 8)	69Y4324
PCI Express riser-card assembly (x 8) (for Emulex 10 GbE adapter, 49Y4202)	59Y3818
PCI Express riser-card assembly (x 16)	69Y4325
PCI-X riser-card assembly	69Y4326
Heat sink, 95 watt	49Y4820
Heat sink, 130 watt	69Y1207
Battery, 3.0 volt	33F8354
Virtual media key (optional)	46C7528
Ethernet adapter (optional)	69Y4509
System board	00AM528
DIMM – 1 GB 1Rx8 1.5V RDIMM	49Y1442
DIMM – 2 GB 2Rx8 1.5V 1Gbit	49Y1443
DIMM – 2 GB 1Rx4 1.5V 1Gbit	49Y1444
DIMM – 4 GB 2Rx4 1.5V 1Gbit (models A2x, B2x, D2x, G2x, F2x, J2x,L2x, M2x, N2x, and JSx)	49Y1445
DIMM – 8 GB 2Rx4 1.5V 2Gbit	49Y1446
DIMM – 2 GB (1 Gb 2Rx8)	44T1573
DIMM – 2 GB (1 Gb 1Rx8) PC3	44T1582
DIMM – 4 GB (2 Gb 2Rx8) 2GBIT RDIMM	44T1598
DIMM – 2 GB (1 Gb 2Rx8)	49Y1410
DIMM – 16 GB 2Rx4 1.35V RDIMM	49Y1565
DIMM – 16 GB 4Rx4 RDIMM	46C7489
DIMM – 4 GB (1Gb 2Rx8 1.35V ) ECC RDIMM	49Y1412
DIMM – 8 GB (2Gb 2Rx4) RDIMM	49Y1415
DIMM – 8 GB (2Gb 2Rx4) RDIMM	49Y1416
DIMM – 16 GB (2Gb 4Rx4) RDIMM	49Y1418
DIMM – 2 GB (1x2GB, 1Rx8) UDIMM	49Y1421
DIMM – 4 GB (2Gb 2Rx8) UDIMM	49Y1422
DIMM – 2 GB (2Gb 1Rx8) RDIMM	49Y1423
DIMM – 4 GB (2Gb 1Rx4) RDIMM	49Y1424
DIMM – 4 GB (2Gb 2Rx8) RDIMM	49Y1425
Power supply, 460 Watt, ac	39Y7229
Power supply, 460 Watt, ac	39Y7231
Power supply, 460 Watt, ac	69Y5907
Power supply, 460 Watt,	69Y5939
Power supply, 675 Watt, dc	39Y7215
Power supply, 675 Watt, dc	69Y5909
Power supply, 675 Watt HE, ac	39Y7218
Power supply, 675 Watt HE, ac	69Y5901
Power supply, 675 Watt HE, ac	69Y5903
Power supply, 675 Watt, ac	39Y7225
Power supply, 675 Watt, ac	39Y7227
Power supply, 675 Watt, ac	39Y7236
Power supply, 675 Watt, ac	69Y5909
Power supply, 675 Watt, ac	69Y5919
Power supply, 675 Watt	69Y5941
Power supply, 675 Watt	69Y5943
Power-supply bay filler (all models except F2x and JSx)	49Y4821
DVD drive, SATA	44W3254
DVD drive, SATA (model JSx)	44W3256
Operator information panel	44E4372
4-drive filler panel, hot-swap	49Y5359
4-drive filler panel, simple swap	49Y5360
Hot-swap HDD filler (models A2x, B2x, C2x, D2x, F2x, G2x, H2x, J2x, L2x, M2x, and N2x)	44T2248
Rack latch bracket kit (all models) contains:	49Y5356
· Bracket, EIA left assembly (1)
· Bracket, EIA right assembly (1)
· Screw, M 3.5 steel (2)
Bezel, 16 HDD	59Y3780
Backplane, SAS, 4 hard disk drives	43V7070
Backplane, SAS, 8 hard disk drives	46W9187
Remote RAID battery tray F	49Y5355
ServeRAID BR10i adapter	44E8690
ServeRAID MR10i adapter	43W4297
2 GB Hypervisor flash device	42D0545
4 GB Hypervisor flash device (field use only)	41Y8279
SAS riser card (non-tape models)	43V7067
Cover, 240 VA safety	49Y4823
Fan cage	49Y5362
Fans (hot swap dual 60 mm)	49Y5361
DIMM air baffle (included in air baffle kit)	59Y3779
Microprocessor air baffle, included in air baffle kit (all models)	59Y3779
Tape kit (optional) contains:	40K6449
· Assembly, mechanical (1)
· Clamp, round cable (1)
· Filler, tape kit 3.5 inch (1)
· Screws, M3x6 MPC (4)
Bezel, 8 hard disk drive with tape drive	59Y3781
Tape enabled SAS riser card (optional)	43V7065
Hard disk drive, SAS hot swap, 146 GB 10 krpm	42D0633
Hard disk drive, SAS hot swap, 73 GB 15 krpm (optional)	42D0673
Hard disk drive, SAS hot swap, 146 GB 15 krpm (optional)	42D0678
Hard disk drive, SAS hot swap, 300 GB 10 krpm (optional)	42D0638
Hard disk drive, SAS hot swap, 500 GB 7.2 krpm (optional)	42D0708
Hard disk drive, 2.5-inch hot-swap, 300 GB, Slim-HS, 10 K	44W2265
Hard disk drive, 2.5-inch hot-swap, 146 GB, Slim-HS, 15 K	44W2295
Hard disk drive, 500 GB 7.2K SFF SAS SAP	49Y1892
Hard disk drive, 600 GB 10K SAS Slim hot swap	49Y2004
Hard disk drive, 500 GB 7.2K 6 Gbps SATA	81Y9727
Solid state disk, 256GB, 2.5-inch simple-swap, SATA	90Y8664
Solid state disk, 128GB, 2.5-inch simple-swap, SATA	90Y8669
SAS expander card for 16 hard disk drives	46M0997
DVD Blank Filler (all models except JSx)	49Y4868
Emulex 10 GbE custom adapter (used for PCI Express riser-card assembly only, 59Y3818)	49Y4202
Emulex 10GbE Virtual Fabric Adapter II	49Y7952
NetXtreme II 1000 Express quad port Ethernet adapter	49Y4222
Qlogic 10Gb CNA card assembly	00Y3274
Qlogic 10Gb Dual-Port CN	42C1802
Qlogic 10Gb SFP+SR	42C1816
10Gb SFP+ SR optical transceiver	46C9297
Brocade 10Gb SFP+ SR optical transceiver	42C1819
Brocade 10Gb CNA for IBM System x	42C1822
10Gb SFP+ transceiver module assembly	46C3449
IBM 10 GbE SW SFP+ transceiver	49Y8579
ServeRAID-BR10i SAS/SATA controller	46C9043
ServeRAID-BR10il SAS/SATA controller (model A2x)	49Y4737
ServeRAID M1015 SAS/SATA Controller	46C8933
ServeRAID-M5014 SAS/SATA controller	46C8929
ServeRAID-M5014 SAS/SATA controller (models F2x and G2x)	46M0918
ServeRAID-M5015 SAS/SATA controller	46C8927
ServeRAID-M5015 SAS/SATA controller (models J2x, JSx, L2x, and M2x)	46M0851
ServeRAID-B5015 SAS/SATA controller	46M0970
ServeRAID-M1015 SAS/SATA controller	46C8933
ServeRAID-M1015 SAS/SATA controller (models B2x, C2x, D2x, H2x, and N2x)	46M0861
ServeRAID-MR10i SAS/SATA controller	46C9037
ServeRAID M5000 series advanced feature key	46M0931
ServeRAID M1000 series advanced feature key	46M0864
Carrier daughter card	44E8763
Daughter card mechanic kit, 1 GB	69Y4586
Miscellaneous parts kit (all models) contains:	69Y4505
· Bracket, DVD retention (1)
· Bracket, PCI fill blank (1)
· Bracket, tooless fillerFILLER (1)
· Gasket, EMC 112mm (2)
· Guide, PCI card (1)
· Latch, 2U SAS controller (1)
· Latch, expander clip (1)
· Latch, PCI card (1)
· Screw, 10×32 shoulder (3)
· Screw, M3 x 0.5 L5 (10)
· Screw, M 3.5 steel (10)
· Screw, M6 hex head (3)
· Screw, slotted M3X5 (10)
· Standoff, shaft (2)
Slide rail kit, Enterprise	69Y5085
Slide rail kit, Gen-II	69Y4391
Battery, ServeRAID	81Y4579
CMA kit, Gen-II
