Bo mạch chủ mainboard server IBM X3650 M3 2u hdd 2.5 inch
4.500.000₫
Ship nội thành Hà Nội (sau 20phút, trong ngày, hẹn giờ)
Ship COD toàn quốc: 24h-72h (có ship hỏa tốc), ship qua nhà xe
Địa chỉ: Số 4 ngõ 142 Hào Nam, P. Ô Chợ Dừa, Q. Đống Đa, Hà Nội
Thời gian làm việc: Giờ hành chính Thứ 2 đến thứ 7 (9h-12h, 13h30-17h30), Chủ nhật (gọi điện/ liên hệ trước)
Mô tả
Thông số kỹ thuật cho bo mạch chủ
• Part Number : 59Y3793 69Y5082 81Y6625
• Manufacturer: IBM
• IBM xSERIES x3650 M3 MOTHERBOARD SYSTEMBOARD 59Y3793 69Y5082 81Y6625
• Compatibility : P12
Specification
| AGP Slots | 0 |
| Audio Output: | None |
| Compatible Memory Type | DDR3 |
| ISA Slots | 1 |
| LPT Ports | 0 |
| Manufacturer | IBM |
| Network On-board | Ethernet |
| OEM Model Number | 81Y6625 |
| PCI Slots | 0 |
| PCI-E Slots | 2 |
| PCI-X Slots | 0 |
| Processor Socket | Socket 1366(LGA1366) |
| PS2 Ports | 0 |
| Serial Ports | 1 |
| USB Ports | 2 |
| Video Outputs | VGA |
| Part Data | |
| Part Number | 81Y6625 |
| Part Description | System Board Assy for 3650 M3 w/Tray |
| Commodity Type | Mother Board |
| Brand | IBM |
Options
Power supply for x3650 M3
675 W, High Efficiency (all models) 39Y7218
675 W, AC (all models) 39Y7225
675 W, AC (all models) 39Y7227
460 W, AC (all models) 39Y7229
460 W, AC (all models) 39Y7231
675 W, AC (all models) 39Y7236
675 W, DC (all models) 39Y7215
| Description | Serial Number |
| Cover (all models) | 59Y3790 |
| PCI Express riser-card assembly (x 8) | 69Y4324 |
| PCI Express riser-card assembly (x 8) (for Emulex 10 GbE adapter, 49Y4202) | 59Y3818 |
| PCI Express riser-card assembly (x 16) | 69Y4325 |
| PCI-X riser-card assembly | 69Y4326 |
| Heat sink, 95 watt | 49Y4820 |
| Heat sink, 130 watt | 69Y1207 |
| Battery, 3.0 volt | 33F8354 |
| Virtual media key (optional) | 46C7528 |
| Ethernet adapter (optional) | 69Y4509 |
| System board | 00AM528 |
| DIMM – 1 GB 1Rx8 1.5V RDIMM | 49Y1442 |
| DIMM – 2 GB 2Rx8 1.5V 1Gbit | 49Y1443 |
| DIMM – 2 GB 1Rx4 1.5V 1Gbit | 49Y1444 |
| DIMM – 4 GB 2Rx4 1.5V 1Gbit (models A2x, B2x, D2x, G2x, F2x, J2x,L2x, M2x, N2x, and JSx) | 49Y1445 |
| DIMM – 8 GB 2Rx4 1.5V 2Gbit | 49Y1446 |
| DIMM – 2 GB (1 Gb 2Rx8) | 44T1573 |
| DIMM – 2 GB (1 Gb 1Rx8) PC3 | 44T1582 |
| DIMM – 4 GB (2 Gb 2Rx8) 2GBIT RDIMM | 44T1598 |
| DIMM – 2 GB (1 Gb 2Rx8) | 49Y1410 |
| DIMM – 16 GB 2Rx4 1.35V RDIMM | 49Y1565 |
| DIMM – 16 GB 4Rx4 RDIMM | 46C7489 |
| DIMM – 4 GB (1Gb 2Rx8 1.35V ) ECC RDIMM | 49Y1412 |
| DIMM – 8 GB (2Gb 2Rx4) RDIMM | 49Y1415 |
| DIMM – 8 GB (2Gb 2Rx4) RDIMM | 49Y1416 |
| DIMM – 16 GB (2Gb 4Rx4) RDIMM | 49Y1418 |
| DIMM – 2 GB (1x2GB, 1Rx8) UDIMM | 49Y1421 |
| DIMM – 4 GB (2Gb 2Rx8) UDIMM | 49Y1422 |
| DIMM – 2 GB (2Gb 1Rx8) RDIMM | 49Y1423 |
| DIMM – 4 GB (2Gb 1Rx4) RDIMM | 49Y1424 |
| DIMM – 4 GB (2Gb 2Rx8) RDIMM | 49Y1425 |
| Power supply, 460 Watt, ac | 39Y7229 |
| Power supply, 460 Watt, ac | 39Y7231 |
| Power supply, 460 Watt, ac | 69Y5907 |
| Power supply, 460 Watt, | 69Y5939 |
| Power supply, 675 Watt, dc | 39Y7215 |
| Power supply, 675 Watt, dc | 69Y5909 |
| Power supply, 675 Watt HE, ac | 39Y7218 |
| Power supply, 675 Watt HE, ac | 69Y5901 |
| Power supply, 675 Watt HE, ac | 69Y5903 |
| Power supply, 675 Watt, ac | 39Y7225 |
| Power supply, 675 Watt, ac | 39Y7227 |
| Power supply, 675 Watt, ac | 39Y7236 |
| Power supply, 675 Watt, ac | 69Y5909 |
| Power supply, 675 Watt, ac | 69Y5919 |
| Power supply, 675 Watt | 69Y5941 |
| Power supply, 675 Watt | 69Y5943 |
| Power-supply bay filler (all models except F2x and JSx) | 49Y4821 |
| DVD drive, SATA | 44W3254 |
| DVD drive, SATA (model JSx) | 44W3256 |
| Operator information panel | 44E4372 |
| 4-drive filler panel, hot-swap | 49Y5359 |
| 4-drive filler panel, simple swap | 49Y5360 |
| Hot-swap HDD filler (models A2x, B2x, C2x, D2x, F2x, G2x, H2x, J2x, L2x, M2x, and N2x) | 44T2248 |
| Rack latch bracket kit (all models) contains: | 49Y5356 |
| · Bracket, EIA left assembly (1) | |
| · Bracket, EIA right assembly (1) | |
| · Screw, M 3.5 steel (2) | |
| Bezel, 16 HDD | 59Y3780 |
| Backplane, SAS, 4 hard disk drives | 43V7070 |
| Backplane, SAS, 8 hard disk drives | 46W9187 |
| Remote RAID battery tray F | 49Y5355 |
| ServeRAID BR10i adapter | 44E8690 |
| ServeRAID MR10i adapter | 43W4297 |
| 2 GB Hypervisor flash device | 42D0545 |
| 4 GB Hypervisor flash device (field use only) | 41Y8279 |
| SAS riser card (non-tape models) | 43V7067 |
| Cover, 240 VA safety | 49Y4823 |
| Fan cage | 49Y5362 |
| Fans (hot swap dual 60 mm) | 49Y5361 |
| DIMM air baffle (included in air baffle kit) | 59Y3779 |
| Microprocessor air baffle, included in air baffle kit (all models) | 59Y3779 |
| Tape kit (optional) contains: | 40K6449 |
| · Assembly, mechanical (1) | |
| · Clamp, round cable (1) | |
| · Filler, tape kit 3.5 inch (1) | |
| · Screws, M3x6 MPC (4) | |
| Bezel, 8 hard disk drive with tape drive | 59Y3781 |
| Tape enabled SAS riser card (optional) | 43V7065 |
| Hard disk drive, SAS hot swap, 146 GB 10 krpm | 42D0633 |
| Hard disk drive, SAS hot swap, 73 GB 15 krpm (optional) | 42D0673 |
| Hard disk drive, SAS hot swap, 146 GB 15 krpm (optional) | 42D0678 |
| Hard disk drive, SAS hot swap, 300 GB 10 krpm (optional) | 42D0638 |
| Hard disk drive, SAS hot swap, 500 GB 7.2 krpm (optional) | 42D0708 |
| Hard disk drive, 2.5-inch hot-swap, 300 GB, Slim-HS, 10 K | 44W2265 |
| Hard disk drive, 2.5-inch hot-swap, 146 GB, Slim-HS, 15 K | 44W2295 |
| Hard disk drive, 500 GB 7.2K SFF SAS SAP | 49Y1892 |
| Hard disk drive, 600 GB 10K SAS Slim hot swap | 49Y2004 |
| Hard disk drive, 500 GB 7.2K 6 Gbps SATA | 81Y9727 |
| Solid state disk, 256GB, 2.5-inch simple-swap, SATA | 90Y8664 |
| Solid state disk, 128GB, 2.5-inch simple-swap, SATA | 90Y8669 |
| SAS expander card for 16 hard disk drives | 46M0997 |
| DVD Blank Filler (all models except JSx) | 49Y4868 |
| Emulex 10 GbE custom adapter (used for PCI Express riser-card assembly only, 59Y3818) | 49Y4202 |
| Emulex 10GbE Virtual Fabric Adapter II | 49Y7952 |
| NetXtreme II 1000 Express quad port Ethernet adapter | 49Y4222 |
| Qlogic 10Gb CNA card assembly | 00Y3274 |
| Qlogic 10Gb Dual-Port CN | 42C1802 |
| Qlogic 10Gb SFP+SR | 42C1816 |
| 10Gb SFP+ SR optical transceiver | 46C9297 |
| Brocade 10Gb SFP+ SR optical transceiver | 42C1819 |
| Brocade 10Gb CNA for IBM System x | 42C1822 |
| 10Gb SFP+ transceiver module assembly | 46C3449 |
| IBM 10 GbE SW SFP+ transceiver | 49Y8579 |
| ServeRAID-BR10i SAS/SATA controller | 46C9043 |
| ServeRAID-BR10il SAS/SATA controller (model A2x) | 49Y4737 |
| ServeRAID M1015 SAS/SATA Controller | 46C8933 |
| ServeRAID-M5014 SAS/SATA controller | 46C8929 |
| ServeRAID-M5014 SAS/SATA controller (models F2x and G2x) | 46M0918 |
| ServeRAID-M5015 SAS/SATA controller | 46C8927 |
| ServeRAID-M5015 SAS/SATA controller (models J2x, JSx, L2x, and M2x) | 46M0851 |
| ServeRAID-B5015 SAS/SATA controller | 46M0970 |
| ServeRAID-M1015 SAS/SATA controller | 46C8933 |
| ServeRAID-M1015 SAS/SATA controller (models B2x, C2x, D2x, H2x, and N2x) | 46M0861 |
| ServeRAID-MR10i SAS/SATA controller | 46C9037 |
| ServeRAID M5000 series advanced feature key | 46M0931 |
| ServeRAID M1000 series advanced feature key | 46M0864 |
| Carrier daughter card | 44E8763 |
| Daughter card mechanic kit, 1 GB | 69Y4586 |
| Miscellaneous parts kit (all models) contains: | 69Y4505 |
| · Bracket, DVD retention (1) | |
| · Bracket, PCI fill blank (1) | |
| · Bracket, tooless fillerFILLER (1) | |
| · Gasket, EMC 112mm (2) | |
| · Guide, PCI card (1) | |
| · Latch, 2U SAS controller (1) | |
| · Latch, expander clip (1) | |
| · Latch, PCI card (1) | |
| · Screw, 10×32 shoulder (3) | |
| · Screw, M3 x 0.5 L5 (10) | |
| · Screw, M 3.5 steel (10) | |
| · Screw, M6 hex head (3) | |
| · Screw, slotted M3X5 (10) | |
| · Standoff, shaft (2) | |
| Slide rail kit, Enterprise | 69Y5085 |
| Slide rail kit, Gen-II | 69Y4391 |
| Battery, ServeRAID | 81Y4579 |
| CMA kit, Gen-II |

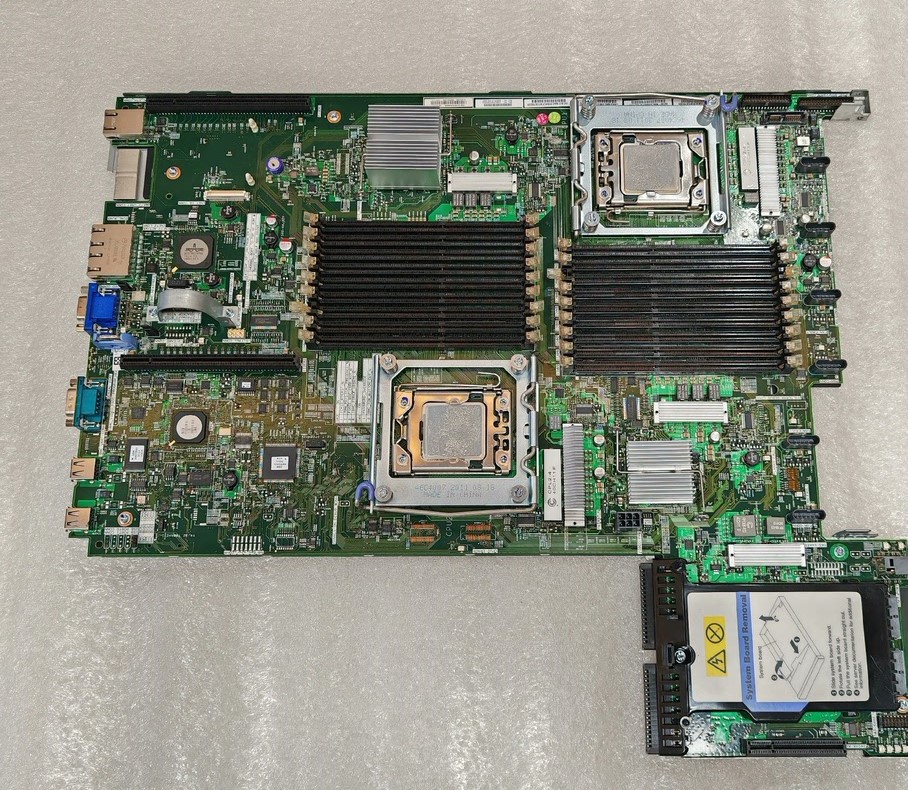

Hình ảnh cho bo mạch chủ
